LED Flood Light – 3030 LED, PC Lens, Die-Cast Aluminum – GCOTS
Product Overview

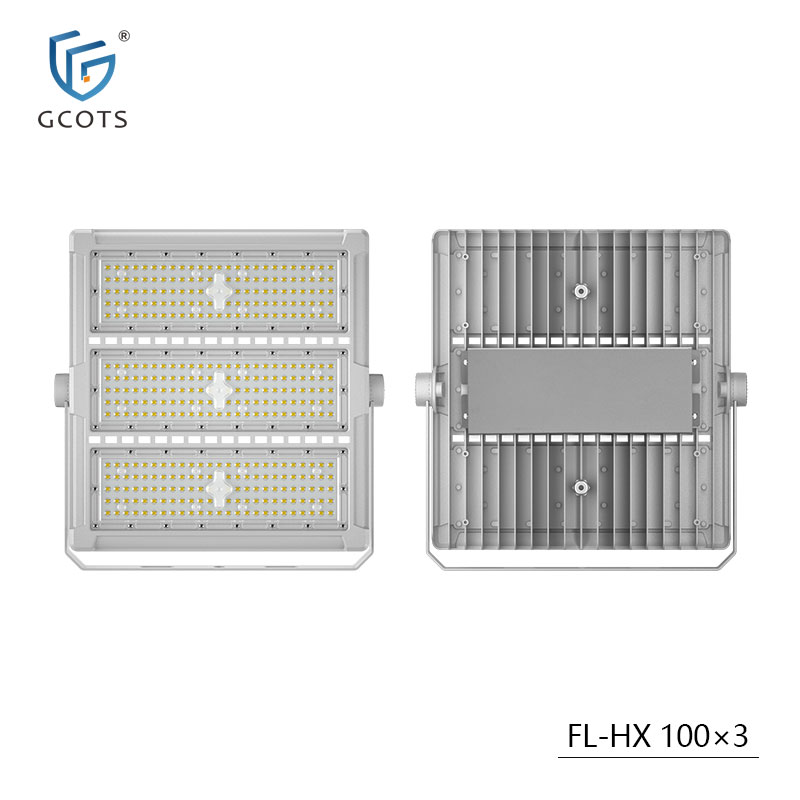

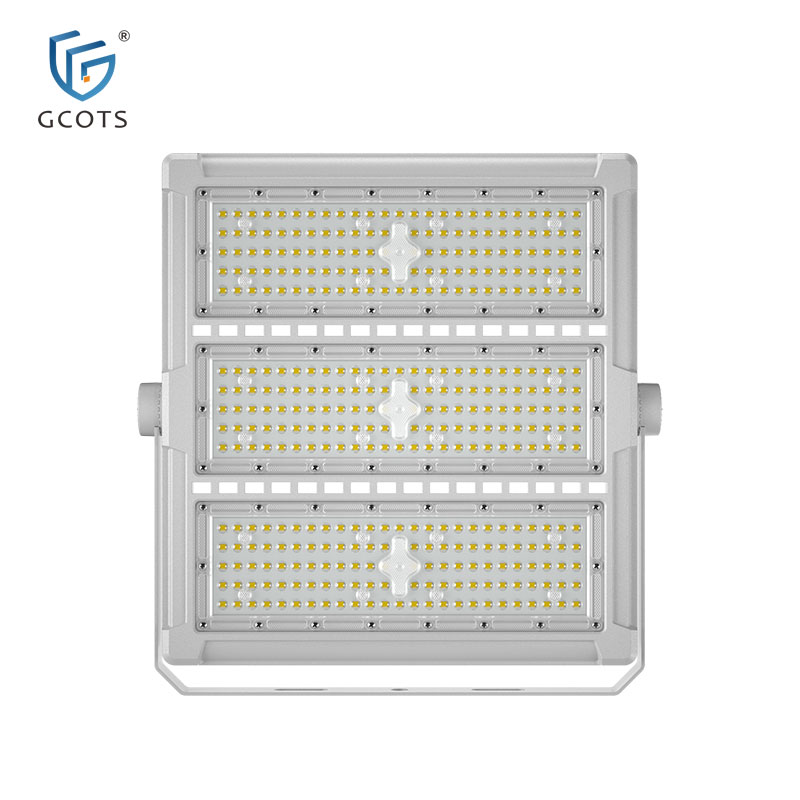

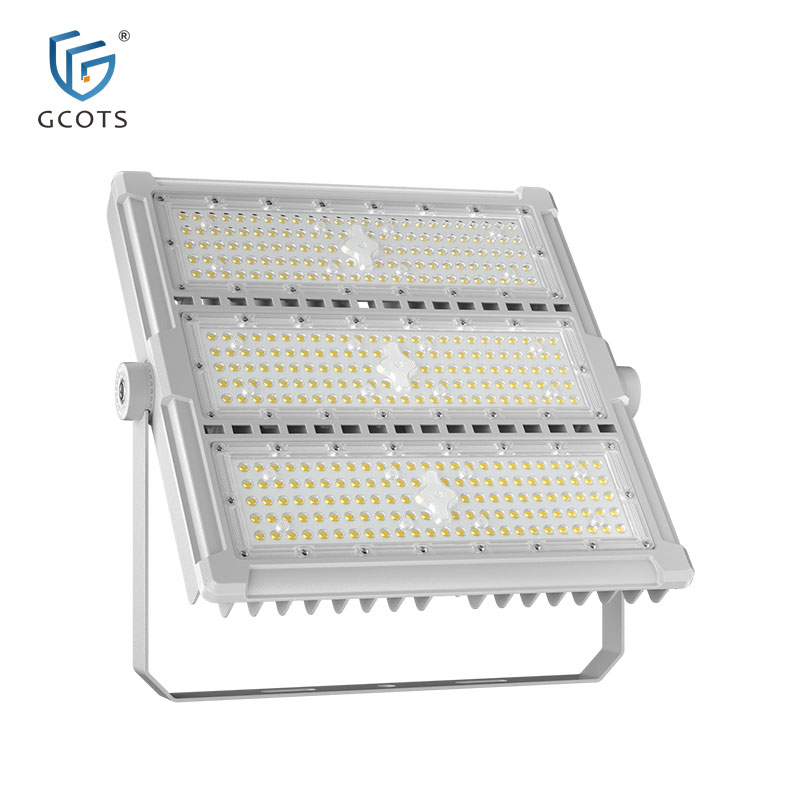

The GCOTS FL-HX100 LED flood light delivers high-performance illumination for outdoor and industrial applications. Utilizing high-efficiency 3030 LED beads, this fixture provides bright, energy-efficient lighting with extended operational lifespan. Precision light distribution combined with high-transmittance PC optical lenses ensures excellent illumination effects and a wide coverage area. The superior sealing performance and integrated die-cast aluminum housing design offer strong resistance to impact and corrosion, making the FL-HX100 suitable for demanding environments including parking lots, building facades, construction sites, and industrial perimeters.
Core Advantages
High-Efficiency 3030 LED Beads: Premium 3030 LED chips deliver high luminous output with extended lifespan. Industry-standard package size ensures reliable performance.
Precision Light Distribution + High-Transmittance PC Optical Lenses: Precision-engineered optics for accurate light distribution. High-transmittance PC lenses maximize usable lumens with 100-120 Lm/W efficacy. Excellent illumination effects with wide coverage area.

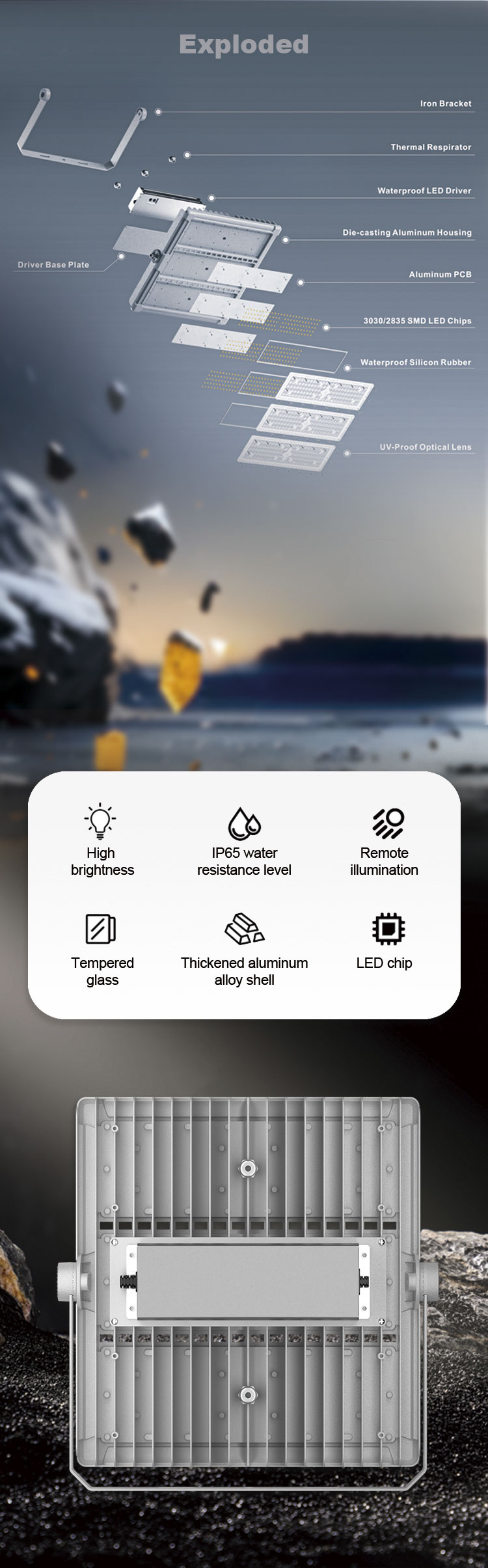

Superior Sealing Performance + Integrated Die-Cast Aluminum Housing: Integrated die-cast aluminum construction provides structural integrity. Superior sealing prevents moisture and dust ingress with IP65 rating. Strong resistance to impact and corrosion for demanding outdoor environments.
Wide Input Voltage Compatibility (AC 180-265V 50Hz): Compatible with standard single-phase power systems. Stable operation across voltage fluctuations.

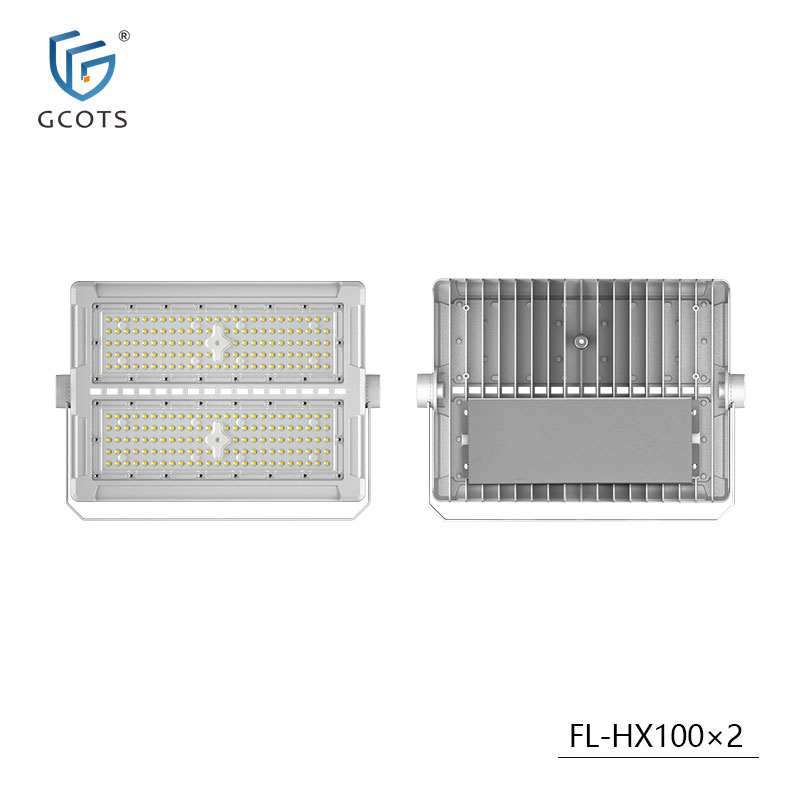

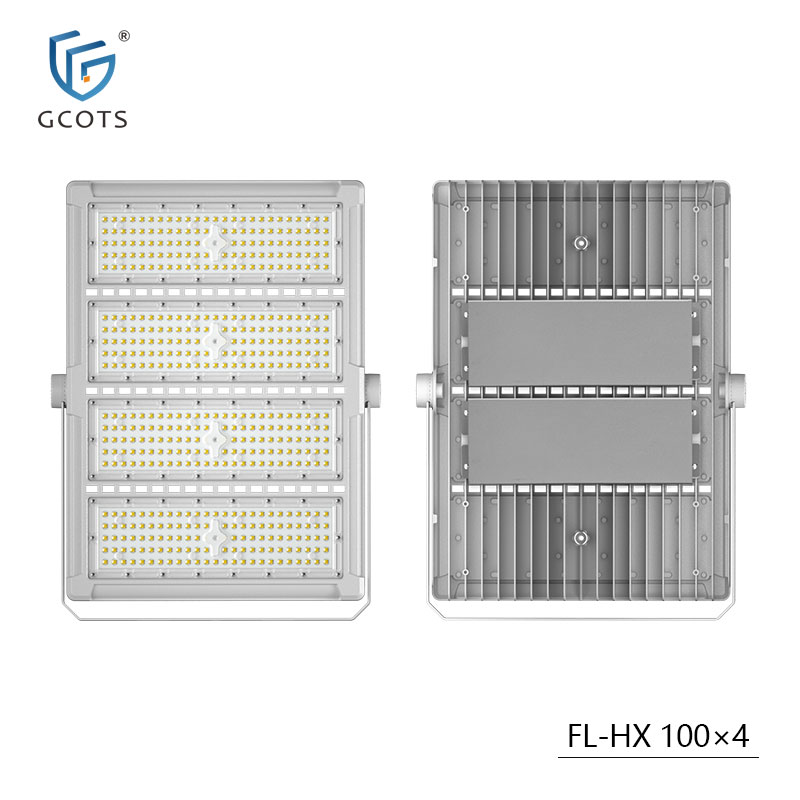

Multiple Power Options (200W / 300W / 400W): Three power configurations to suit different application requirements.

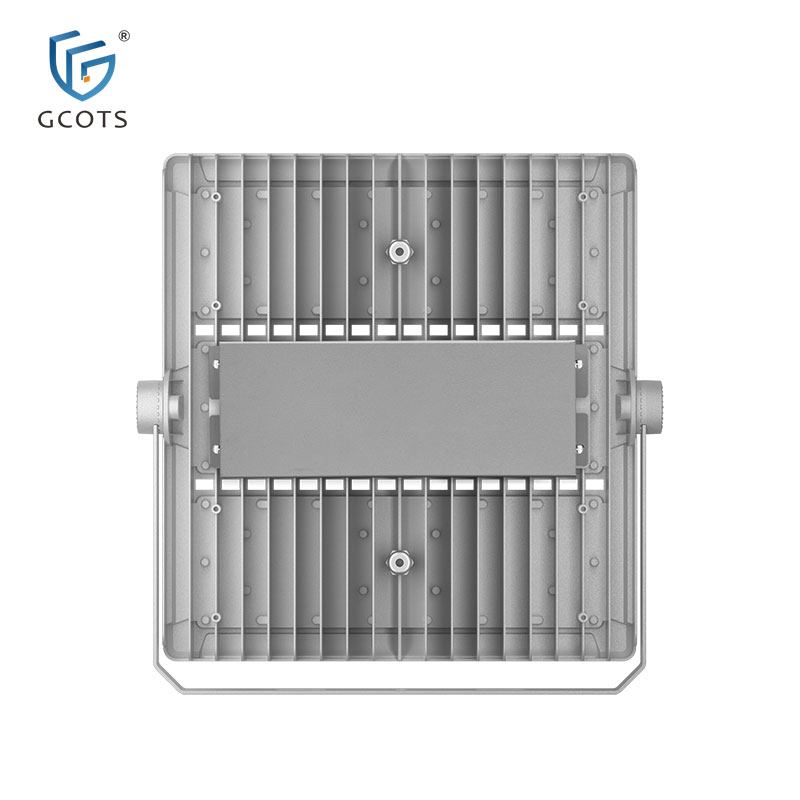

Good Heat Dissipation: Die-cast aluminum housing efficiently dissipates heat from 3030 LED chips, preserving luminous efficacy and extending fixture lifespan.

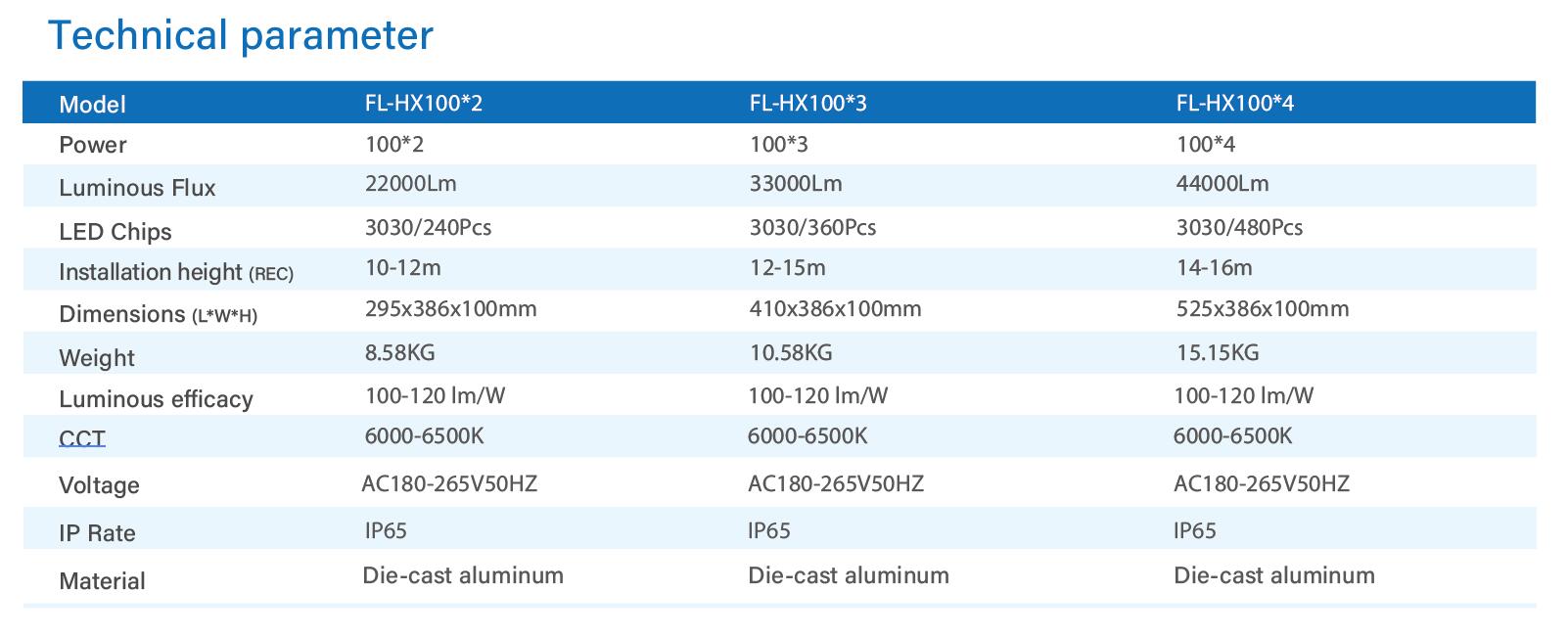

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | LED Flood Light (AC Grid-Powered) |
| Model | FL-HX100 |
| LED Type | 3030 High-Efficiency |
| Optical System | Precision light distribution + PC optical lenses |
| Lens Transmittance | High |
| Coverage Area | Wide |
| Sealing Performance | Superior |
| Housing Material | Integrated Die-Cast Aluminum |
| Impact Resistance | Strong |
| Corrosion Resistance | Strong |
| Heat Dissipation | Good |
| Input Voltage | AC 180-265V / 50Hz |
| Power Options | 200W / 300W / 400W |

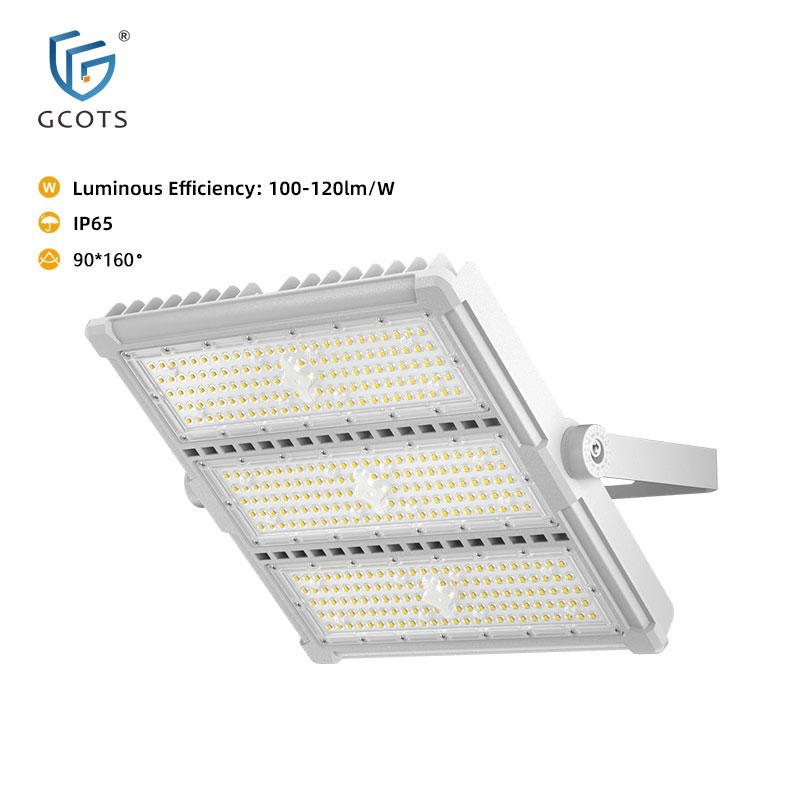

| Luminous Efficacy | 100-120 Lm/W |
| Color Temperature | 6000-6500K (Cool Daylight) |
| Protection Rating | IP65 |
| Lifespan | 50,000+ hours (typical) |
Power Configuration Guide
| Power | Typical Application |
|---|---|
| 200W | Medium parking lots, building facades, security perimeters |
| 300W | Large parking lots, industrial perimeters, construction sites |
| 400W | Extra-large areas, sports courts, major commercial complexes |
Application Scenarios
This LED flood light is ideal for:
Parking lots and commercial complexes
Building facades and architectural accent lighting
Construction sites and industrial perimeters
Sports courts and recreational areas
Security perimeters and fence lines

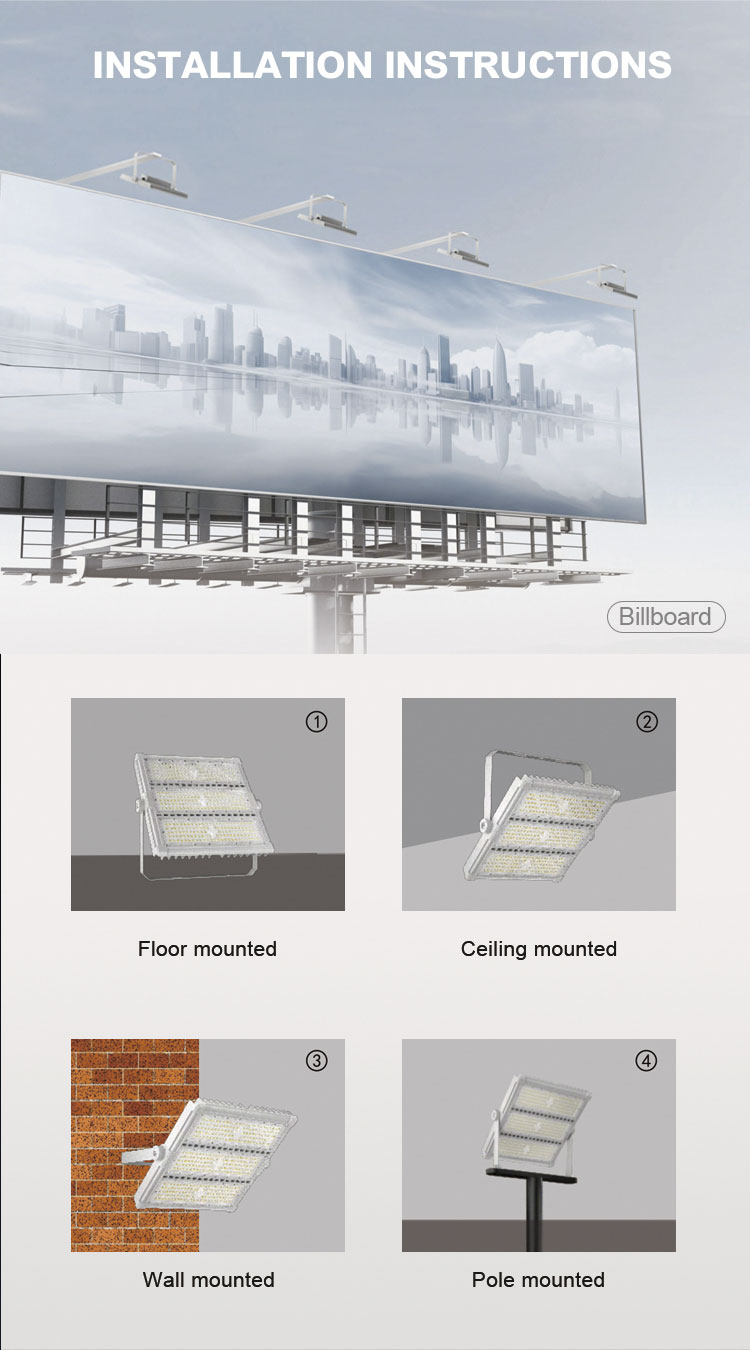

Signage and billboard illumination
Large-area pathway and area lighting
Why Choose GCOTS
With 29 years of OEM/ODM manufacturing experience, GCOTS builds LED flood lights for demanding outdoor applications. The FL-HX100 combines high-efficiency 3030 LED beads, precision light distribution with high-transmittance PC lenses (100-120 Lm/W, wide coverage), superior sealing with IP65 rating, integrated die-cast aluminum housing (strong impact and corrosion resistance), and good heat dissipation. Available in 200W, 300W, and 400W options. AC 180-265V 50Hz input voltage. 6000-6500K color temperature. We offer factory-direct pricing, strict quality control, and a 5-year warranty on the LED module.
