GCOTS SL-AIO-XCII all-in-one solar street light available in 40W,60W,80W, IP65 waterproof, 7070 LED chips, lithium iron phosphate battery, 6000K cool white. Die cast aluminum housing for highway, rural road project wholesale. Request quote.

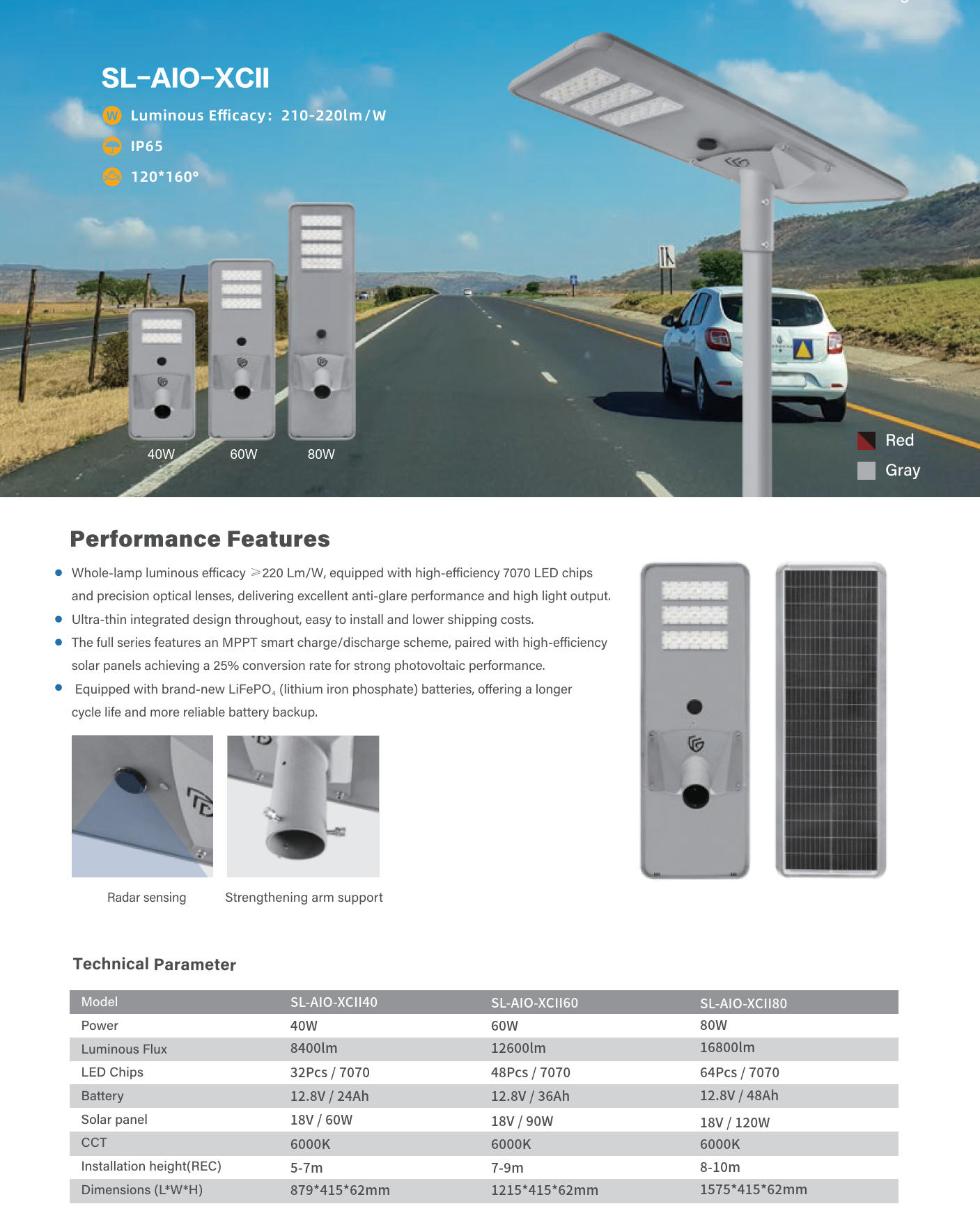

SL-AIO-XCII All-in-One Solar Street Light, 40W 60W 80W 7070 LED IP65 Integrated Solar Road Lamp
The GCOTS SL-AIO-XCII all-in-one integrated solar street light comes in three power options: 40W, 60W and 80W. It adopts premium 7070 LED chips, with a wide beam angle of 120*160°, CRI＞70 and 6000K cool white illumination. Built-in lithium iron phosphate battery and matched high efficiency solar panel. The lamp fixture uses die cast aluminum housing plus PC lens, achieving IP65 waterproof and dustproof rating to withstand diverse harsh outdoor climate. The recommended installation height ranges from 5-10 meters for different wattage models. It is ideal for rural roads, town streets, highways, parks and off-grid public lighting projects. Bulk wholesale and project-oriented OEM & ODM services are available for global purchasers.
3 Power Selections: 40W,60W,80W three optional wattages to fit different road widths and brightness requirements.
IP65 Outdoor Protection: Die cast aluminum body with PC lens, IP65 waterproof & dustproof, stable performance in rainy and dusty outdoor environments.
Lithium Iron Phosphate Battery: Safe, long cycle life lithium iron phosphate battery, reliable energy storage to support all-night lighting.
Wide 120*160° Beam Angle: Professional optical design, wide light distribution, uniform pavement illumination and fewer dark zones.
High-performance 7070 LED Chips: Deliver high lumen output and stable lighting performance for long-term road lighting.
All-in-one Compact Structure: Simple installation on lamp poles, save labor cost for large-scale engineering projects.

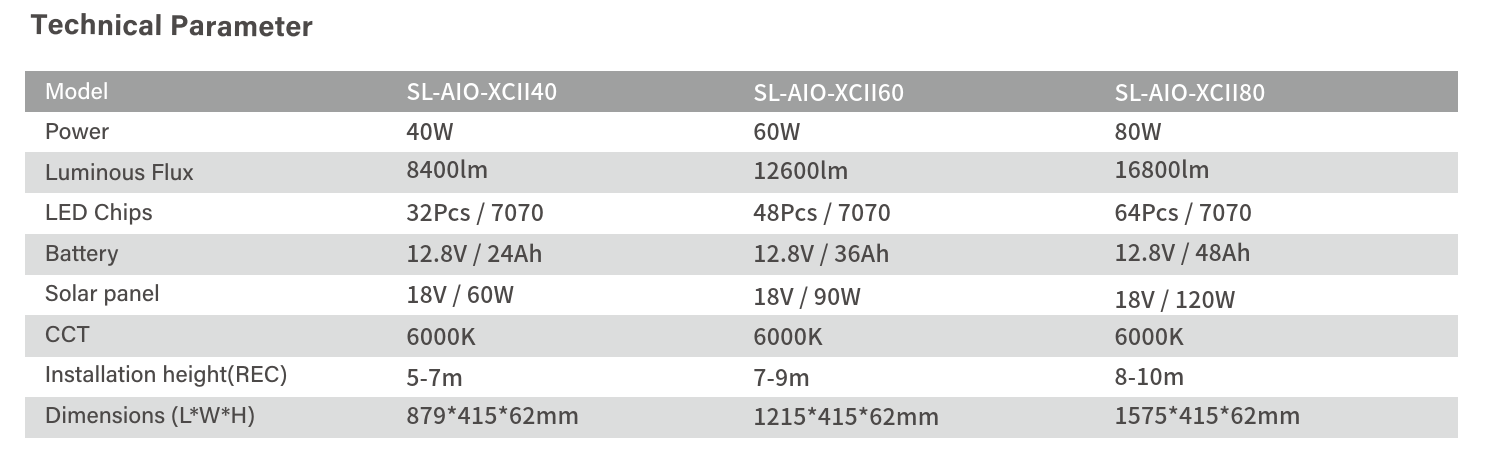

| Parameter | SL-AIO-XCII40 | SL-AIO-XCII60 | SL-AIO-XCII80 |
|---|---|---|---|
| Model | SL-AIO-XCII40 | SL-AIO-XCII60 | SL-AIO-XCII80 |
| LED Power | 40W | 60W | 80W |
| Luminous Flux | 8400lm | 12600lm | 16800lm |
| LED Type | 7070 | 7070 | 7070 |
| Number of LED Beads | 32PCS | 48PCS | 64PCS |
| Beam Angle | 120*160° | 120*160° | 120*160° |
| CRI | >70 | >70 | >70 |
| CCT | 6000K | 6000K | 6000K |
| Solar Panel Spec | 18V / 60W | 18V / 90W | 18V / 120W |
| Battery Type | Lithium iron phosphate | Lithium iron phosphate | Lithium iron phosphate |
| Battery Spec | 12.8V /24AH | 12.8V /36AH | 12.8V /48AH |
| IP Rating | IP65 | IP65 | IP65 |
| Lamp Material | Die cast aluminum + PC lens | Die cast aluminum + PC lens | Die cast aluminum + PC lens |
| Recommended Installation Height | 5-7m | 7-9m | 8-10m |

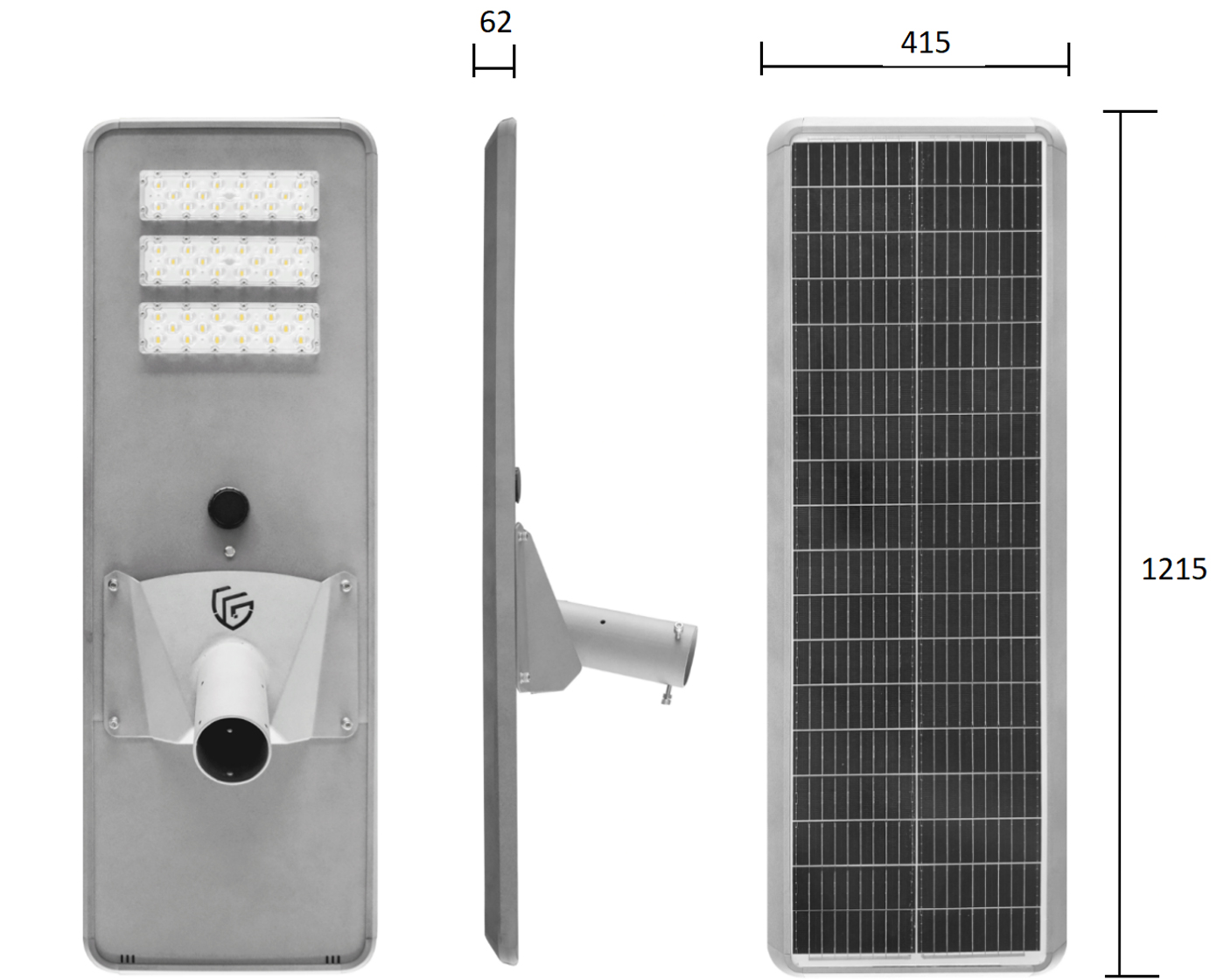

| Dimensions (Excluding Sleeve) | 87941562mm | 121541562mm | 157541562mm |

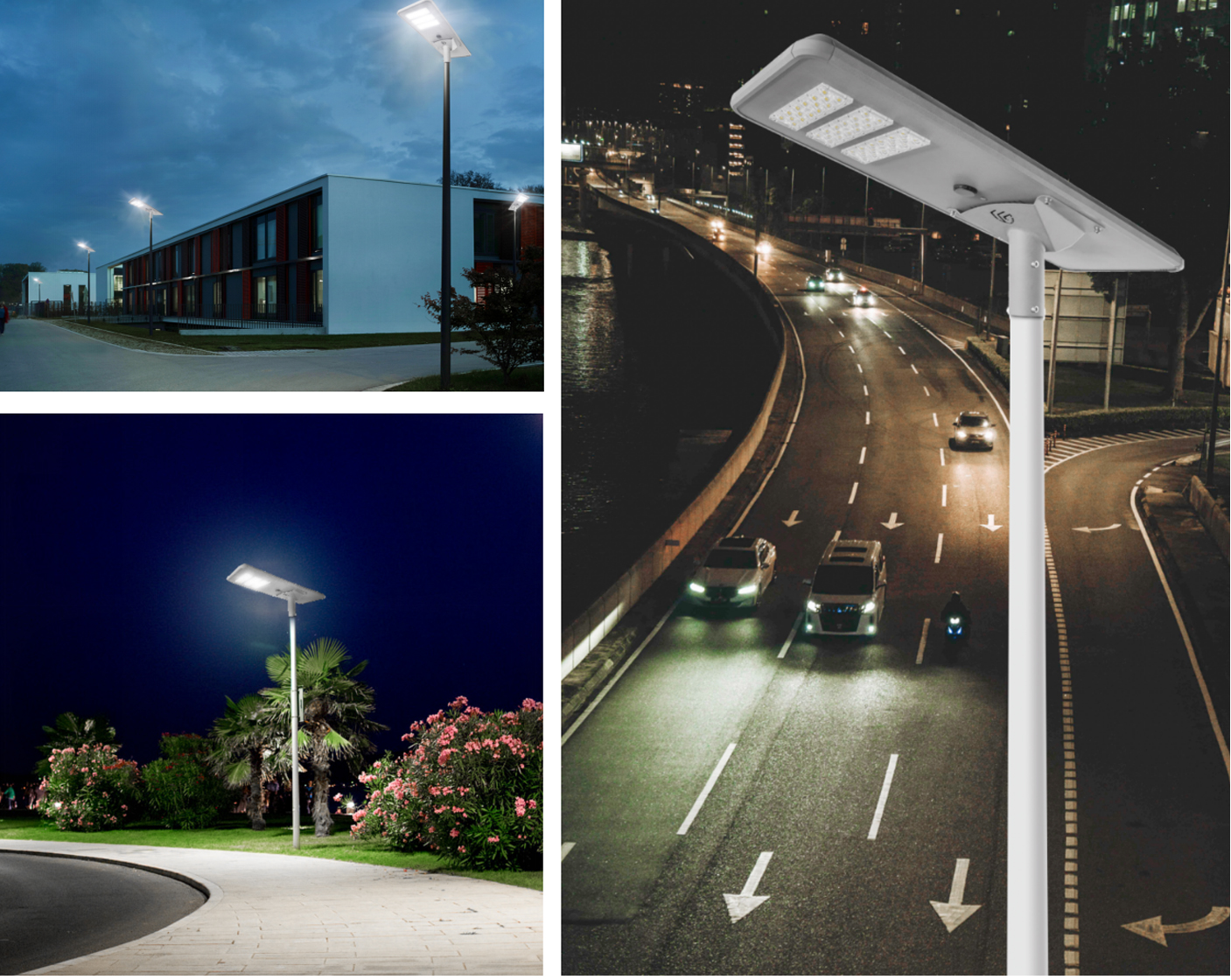

This SL-AIO-XCII all-in-one solar street light is widely applied for various off-grid outdoor lighting projects:
Rural road and town highway reconstruction
Municipal street and residential community lanes
Park, scenic spot and pedestrian pathway lighting
Remote areas without municipal power supply
Large parking lot and campus outdoor lighting
Benefit from GCOTS rich experience in solar lighting manufacturing, SL-AIO-XCII integrated solar street light provides 40W,60W,80W three models. It uses high-quality 7070 LED chips, paired with lithium iron phosphate battery and high-efficiency solar panel. IP65 die cast aluminum housing ensures great durability for outdoor use. 120*160° ultra-wide beam angle creates even road illumination. We provide factory-direct supply, bidding-ready documents and reliable after-sales support for worldwide contractors and project buyers.

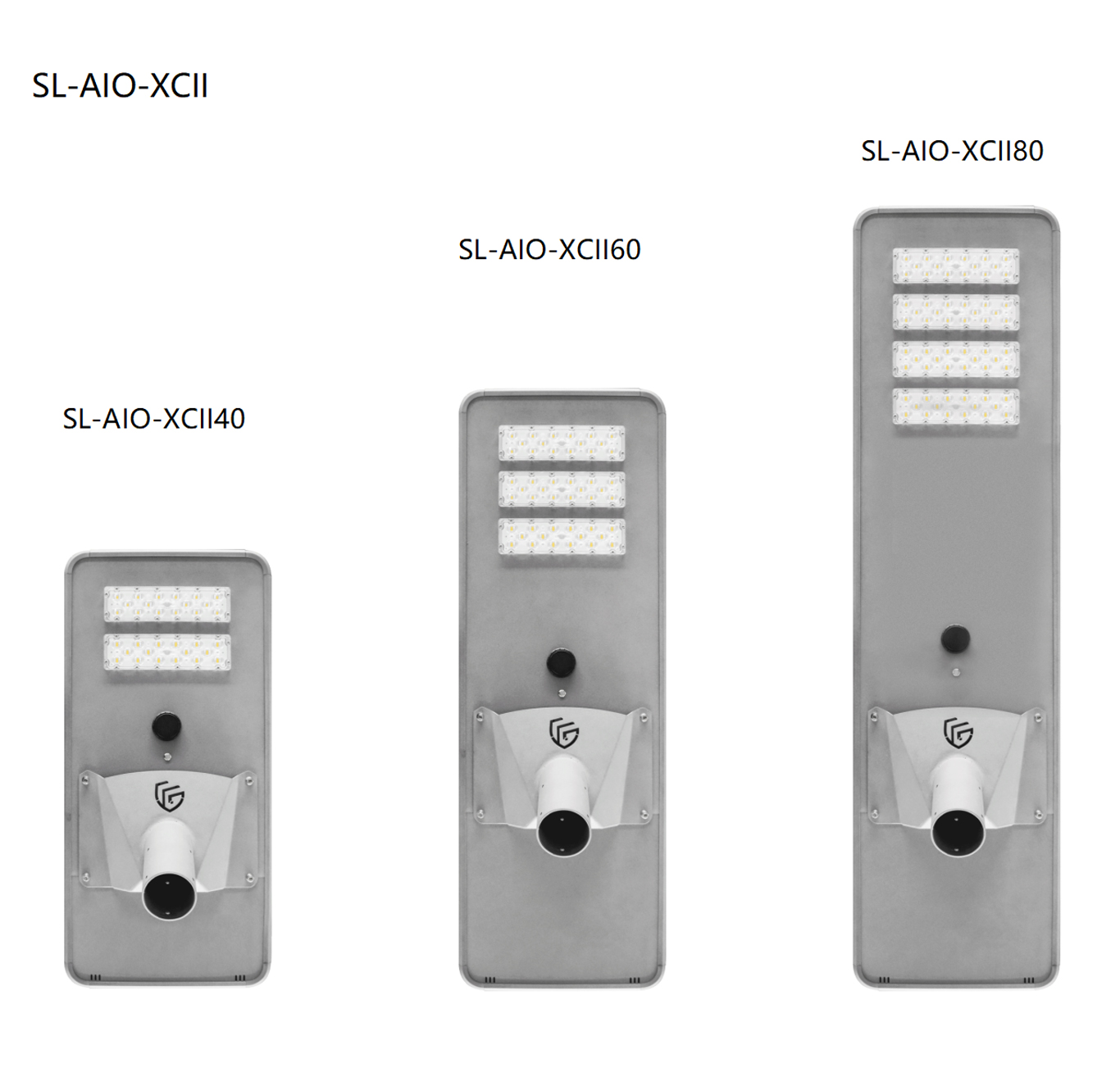

Three wattage options: 40W (SL-AIO-XCII40), 60W (SL-AIO-XCII60), 80W (SL-AIO-XCII80).
It reaches IP65 waterproof and dustproof grade, suitable for long-term outdoor application.
Built-in lithium iron phosphate battery, 24AH for 40W,36AH for 60W,48AH for 80W, featuring high safety and long cycle life.
5-7 meters for 40W version,7-9 meters for 60W version,8-10 meters for 80W version.
Yes, we support bulk wholesale, rural road project tender and OEM & ODM customization. Contact us for datasheet and formal quotation.
If you are sourcing IP65 all-in-one solar street light for rural or off-grid road lighting projects, please send us your inquiry for detailed quotation and technical datasheet. We will reply within 24‑48 working hours.
